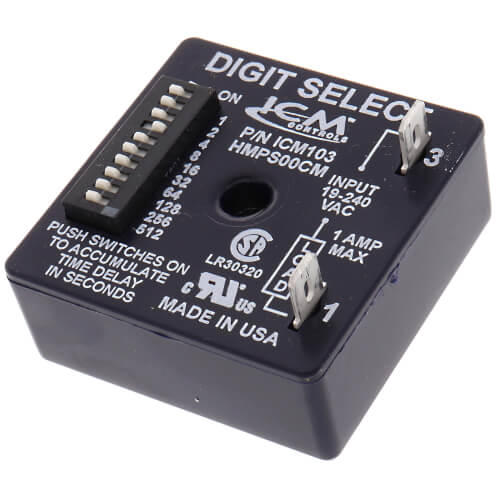

ICM103 Delay on Make Timer (1-1,023 Second Switch-Settable Delay)
$19.00each
Description
Delay on Make Timers are ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges.
Mode of Operation – When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
Features
- Highly precise digital timing
- Switch-settable time delays
- Ideal for ice machine applications
- Universal voltage operation
- Repeat accuracy .5% over voltage and temperature range
3 in stock
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Product Highlights |
Voltage : 18/240 VAC ,Amperage : 1 Amps ,Size : 2" x 2" |
|---|---|
| Specs |
Product Type: Delay on Make ,Time Delay: 1-1023 Sec Switch-Settable ,Voltage: 18/240 VAC ,Amperage: 1 ,Amp Inrush: 10 ,Holding Current: 40 mA ,Voltage Drop: 2.5v @1amp ,Size: 2" x 2" ,Replaces: 32394 – 3310-068 – TD3001A – TMF-19 – TMF-80 – 32396 – 7061 – 1C213 ,OEM: Ice-O-Matic – A-1 – Robertshaw – MARS – Supco |
| Brand |
ICM Controls |
Description
Related products
ICM102 Delay on Make Timer (.03-10 Minute Adjustable Delay)
In stock
| Product Highlights |
Voltage : 18/240 VAC ,Amperage : 1.5 Amps ,Size : 2" x 2" |
|---|---|
| Specs |
Time Delay: .03-10 Min Adjustable ,Product Type: Delay on Make ,Voltage: 18/240 VAC ,Amperage: 1.5 ,Amp Inrush: 15 ,Holding Current: 40 mA ,Size: 2" x 2" ,Wiring: 2-Wire ,Voltage Drop: 2.5v @1amp |
| Brand |
ICM Controls |
ICM450A 3 Phase Line Voltage Monitor – Delay on Break Timer, 0-10 Minutes (English & Spanish)
In stock
| Product Highlights |
Programmability: Programmable ,Voltage: 190-600 VAC ,Mount: Surface |
|---|---|
| Specs |
Programmability: Programmable ,Voltage: 190-600 VAC ,Frequency: 50-60 Hz ,Operating Temp Range: -40°F to 149°F ,Control: 18-240 VAC ,Delay on Break Timer: 0-10 Minutes ,Output: SPDT (relay) ,Dimensions: 6.5" x 4.75" x 1.09" ,Mount: Surface |
| Brand |
ICM Controls |
