3″ E-Lite Plastic Equipment Pad, 36″ x 36″

Overview

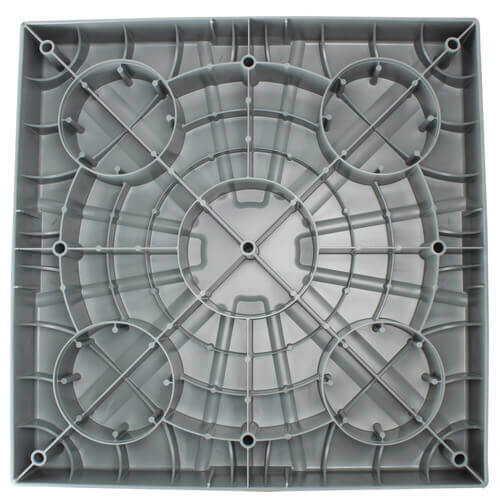

E Lite® is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite® is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

Features

• Lightweight yet rugged
• Drillable for securing unit
• Uniform ribbing transfers load evenly
• Unaffected by UV or weather
• Subtle texture resists unit slide

Technical Data

FREEZE/THAW
Flawless performance under the 25-cycle regimen specified by ASTM C67

CHEMICAL RESISTANCE
Does not crack, fake, or warp when tested per ASTM D2299 with the following:

• R-22 and R-134a
• Synthetic canine urine
• Compressor oil
• Salt solution, 20% by volume
