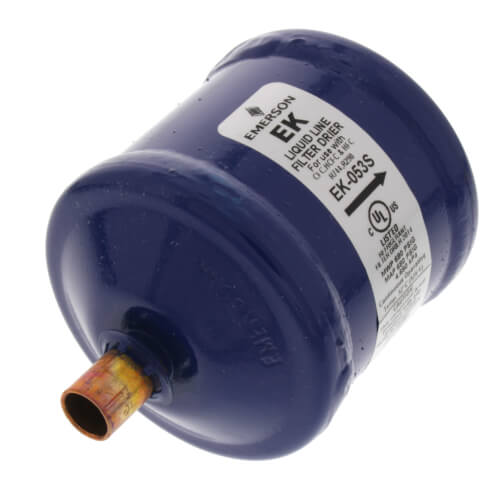

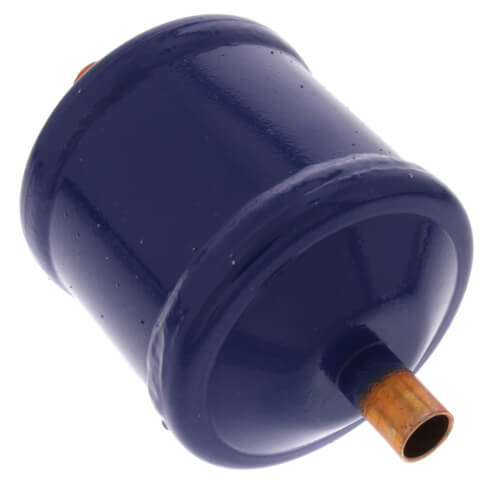

3/8″ ODF EK-Series Liquid line Filter Drier (5 Cubic Inches)
$14.78each
Description
3/8″ ODF EK-Series Liquid line Filter Drier
The EK Liquid Line Filter Drier is a premium compacted bead Filter Drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line Filter Drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507..
Features:
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
- Approved for POE oils with Copeland? compressors
- Shock resistant steel shell construction
Specifications:
- Desiccant blend – optimized for high water capacity and acid capacity
- Filtration: 20 microns
- Maximum working pressure: 680 psig
- UL/CUL file number: SA 3124
MANUALS (1)
3 in stock
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Product Highlights |
Connection Size: 3/8" ,Connection Type: ODF ,Refrigerant Type: R-507 – R-12 – R-22 – R-134A – R-410A – R-404A |
|---|---|
| Specs |
Connection Size: 3/8" ,Connection Type: ODF ,Cubic Inches: 5 ,Product Type: Filter Drier ,Type: Liquid Line ,Max. Working Pressure: 680 PSI ,Micron Rating: 20 ,Refrigerant Type: R-507 – R-12 – R-22 – R-134A – R-410A – R-404A |
| Brand |
Emerson Flow Controls |
